OSE Oil Heating System Hazardous Location

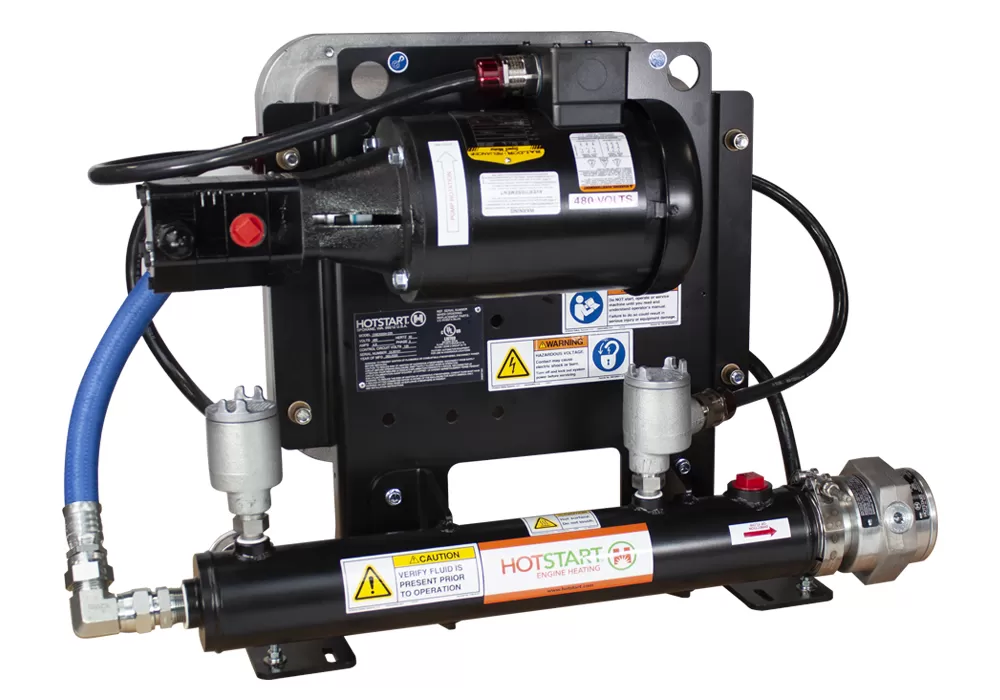

HOTSTART’s OSE (UL C/US listed; Class 1, Div. 2, Group D, T3 or Class 1, Zone 2, Group IIA T3 depending on configuration) is a compact oil heating system for use in North American hazardous locations and is designed to maintain an engine or compressor’s optimal oil viscosity for gas compressor or offshore equipment applications. To improve startability and availability, the OSE continuously circulates heated oil throughout the oil sump or lubrication system, maintaining a uniform and consistent temperature to ensure oil viscosity is at optimal levels for engine or compressor protection.
Continuous lubrication of the compressor frame, bearings and crossheads with heated oil minimizes wear and tear, reducing overall maintenance. The OSE delivers the required flow to achieve pressure permissives for startup, eliminating the need for a separate prelube pump, motor and controller. Designed as a user-friendly, pre-packaged system, the OSE includes all necessary components and features a foot-mounted configuration to reduce overall footprint. Its remote automatic function and customer interface connections enable the OSE to be easily integrated into any control system.
In oil and gas applications, improving equipment availability and maintaining system readiness are critical factors in reducing expenses and improving the bottom line. In cold climates, HOTSTART heating systems ensure immediate startup on demand even in freezing temperatures. In warm, humid climates, HOTSTART systems maintain equipment above the dew point, eliminating the risk of condensation forming inside the oil sump or pan.
Can be used in hazardous locations.
Heating Information
Primary Heating
- Lubrication Oil
Primary Heat Power
- 1.5 kW
- 2.5 kW
- 4 kW
Power Specifications
Power Sources
- AC, Single-Phase, 60 Hz
- AC, Three-Phase, 60 Hz
Voltages
- 208
- 240
- 480
- 575
Power Connectors
- Hardwired
Temperature Control
Primary Temperature Control
- 32–176°F (0–80°C), adjustable
Primary Temperature Control Set Points
- 105°F (40°C), factory set
Primary High Limit Temperature
- 195°F (90°C)
Mount Types
- Foot
Inlets / Outlets
Inlets
- Determined by flow rate
Outlets
- 1” NPT
Ingress Options
Control Box Ingress
- NEMA 4, 7, 9
Certifications
- UL-C / US listed
